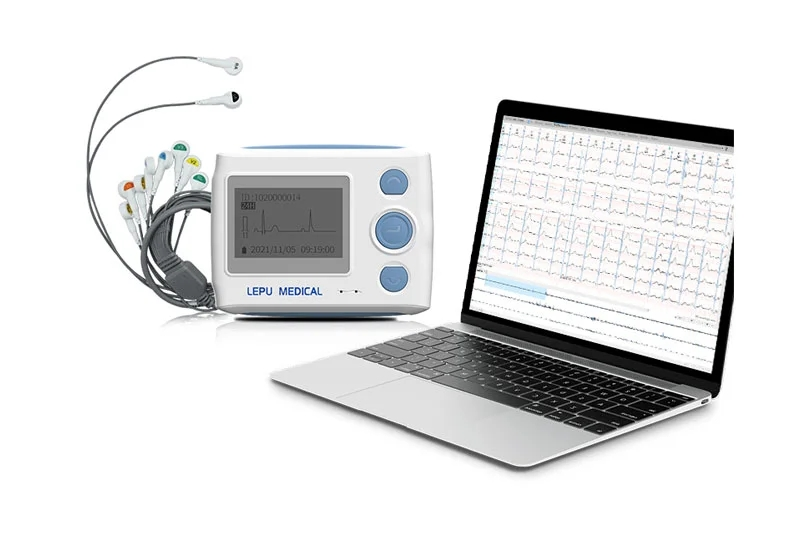

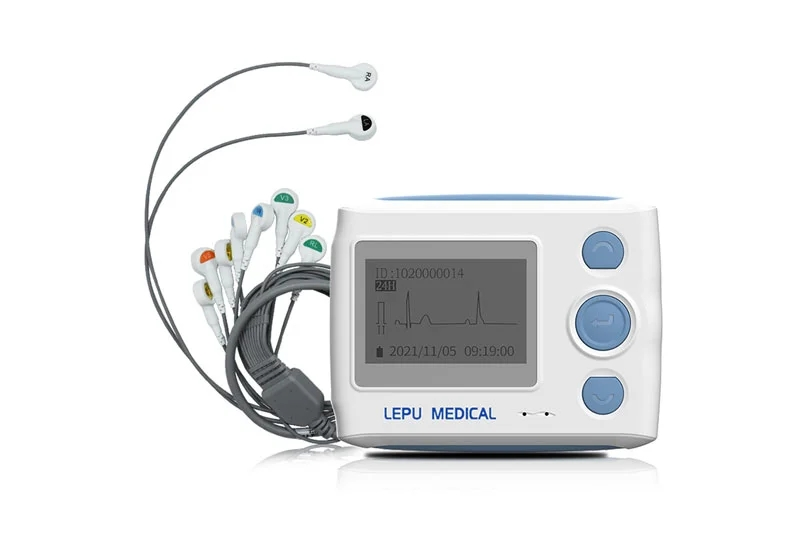

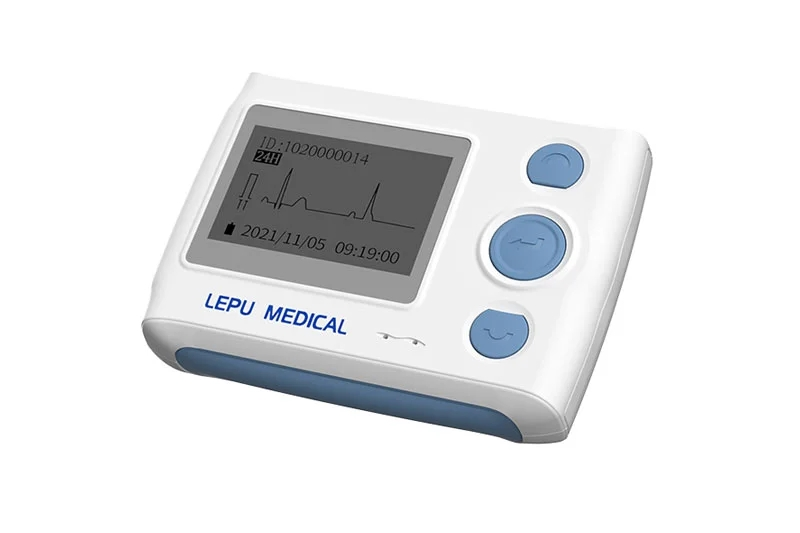

The Lepu Medical Grade TH12 Telehealth Holter ECG Monitor can take 24-hour continuous monitoring of 12 Leads ECG anytime, anywhere. Easier operation and faster diagnosis.

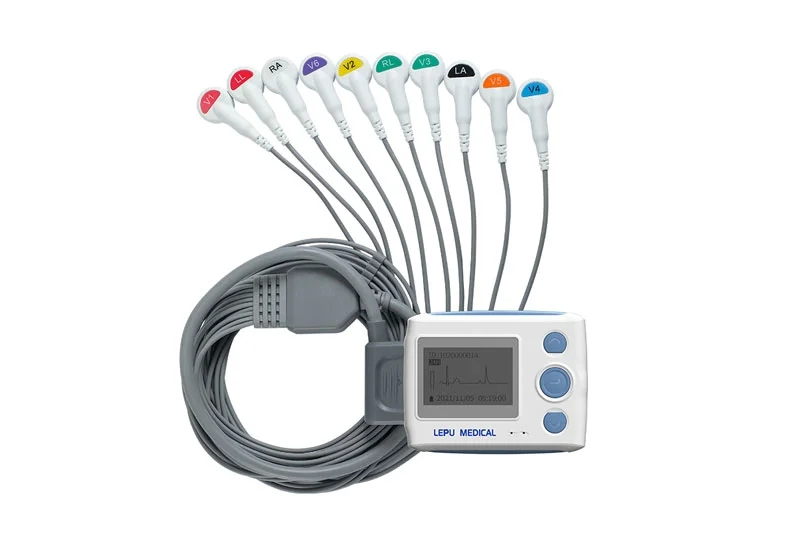

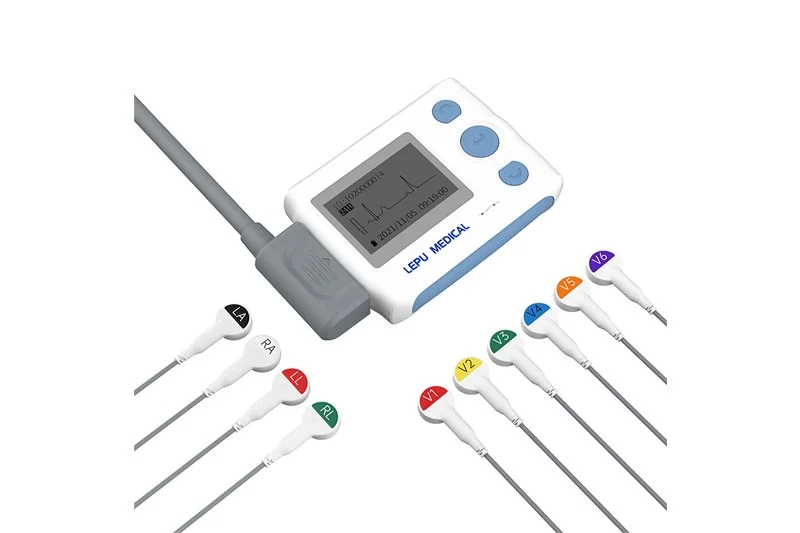

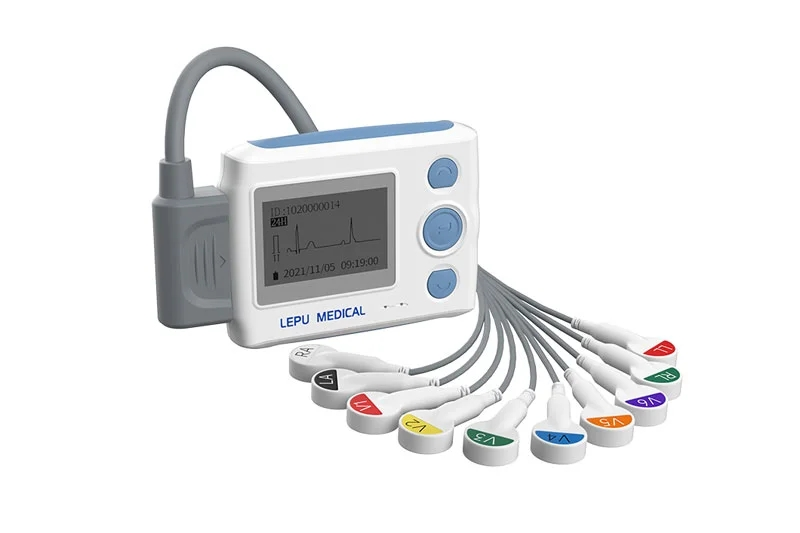

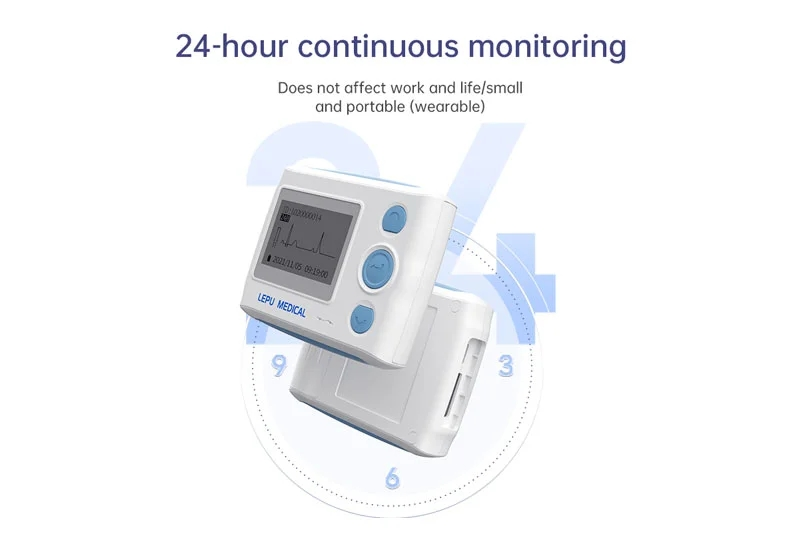

Up to 24 hours of continuous 12 Channels ECG tracking
Holter ECG Monitoring.

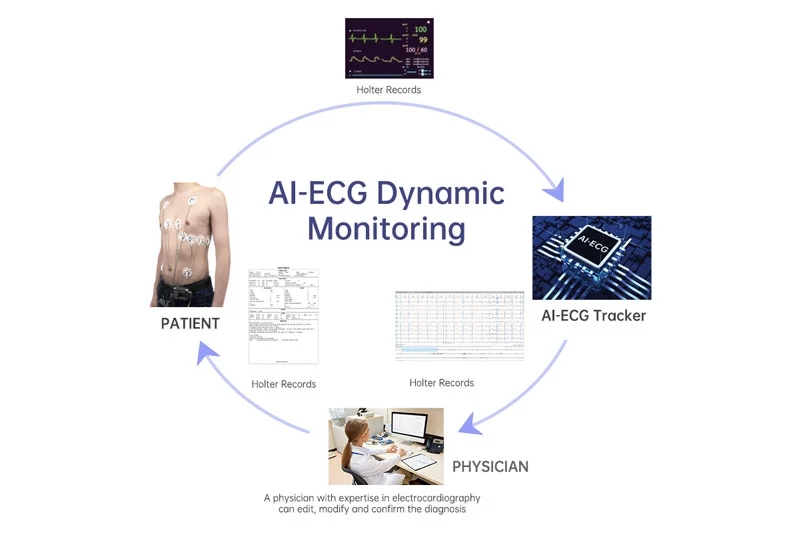

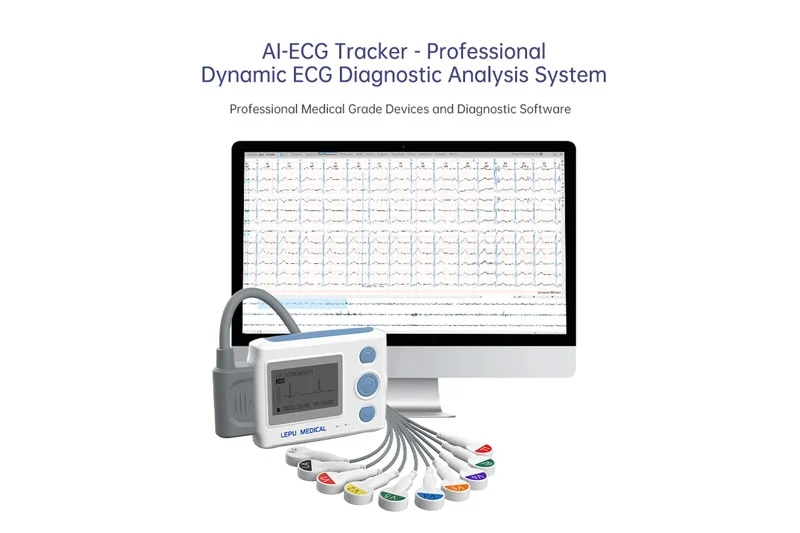

Artificial Intelligence Analysis.

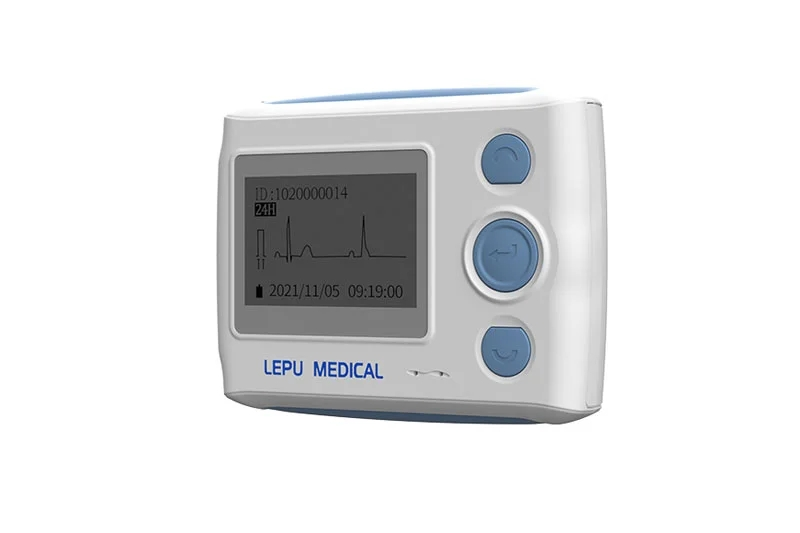

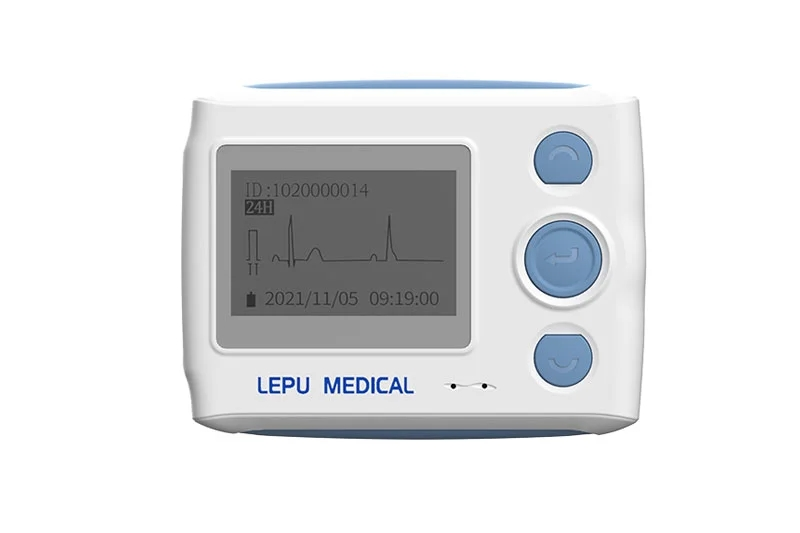

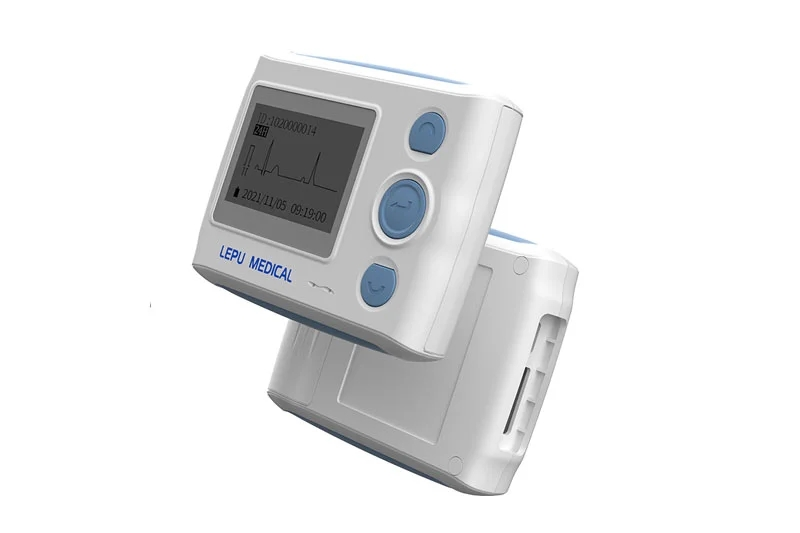

Palm size - lightweight and portable.
Transfer ECG data from SD card for data management.
| Specififications | |
| Number of Channels | 12 leads |
| Sampling Frequency | 250Hz |
| Sampling Accuracy | 24 bits |
| Input Dynamic Range | ≤±5mV |
| Input Impedance | >10M |
| Common Mode Rejection | ≥80dB |
| System Noise | ≤50μV(p/v) |
| Frequency Response | (0.67Hz~40Hz) (+3dB~-3dB) |
| Time Constant | ≥3.2s |
| Polarization Resistance Voltage | ±300mV |
| Storage | Equipped with SD card, which can store 24 hours record |

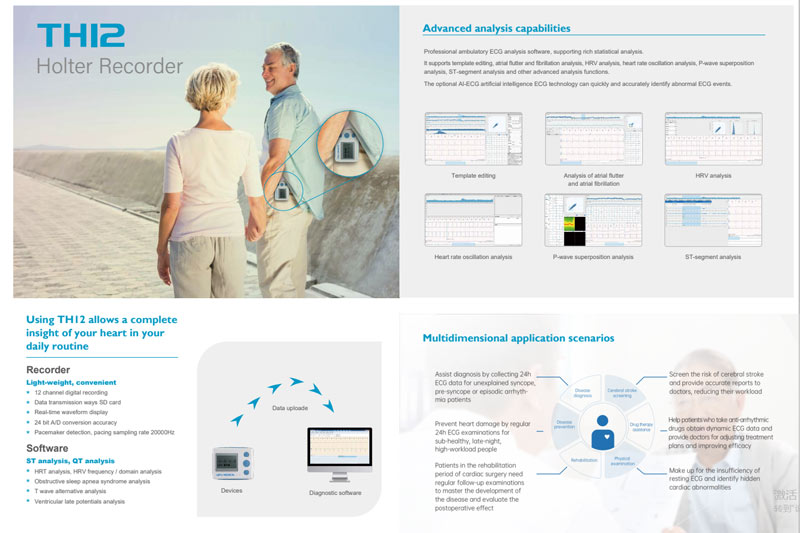

| Recorder | Light-weight, convenient |
| 3/12 channel digital recording | |
| 2 data transmission ways: USB cable or SD card | |

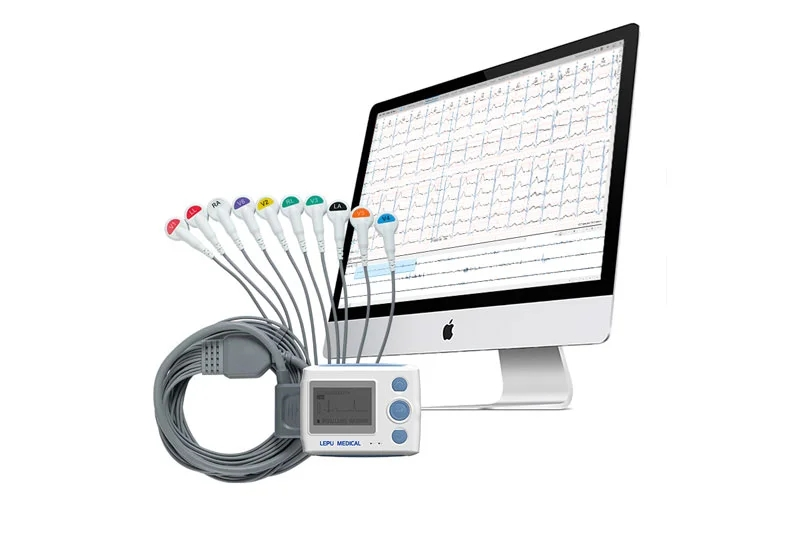

| Real-time waveform display | |
| 10 bit A/D conversion accuracy | |
| Pacemaker detection, pacing sampling rate 20000HZ | |

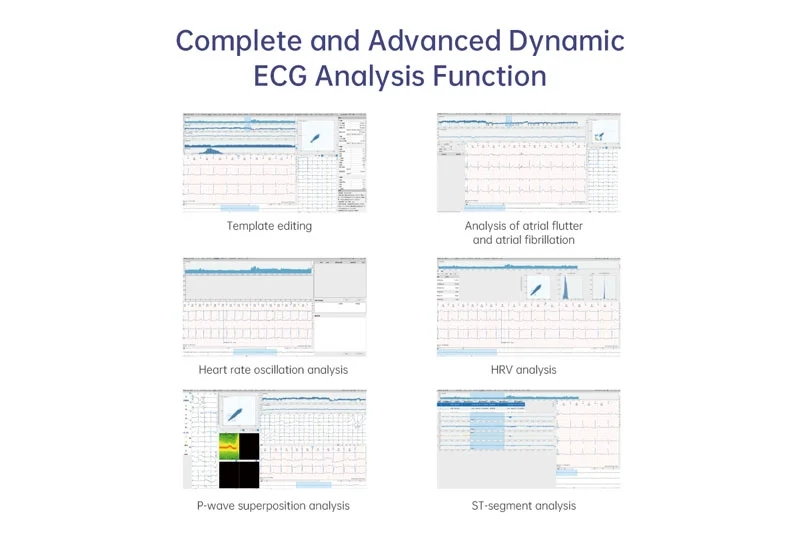

| Software | ST analysis, QT analysis |
| HRT analysis, HRV frequency/domain analysis | |
| Obstructive sleep apnea syndrome analysis | |
| T wave alternative analysis | |
| Ventricular late potentials analysis | |
| Waterfall display analysis | |
