All-in-one solution for mobile medical.
One device. One system.
Checking health anytime anywhere.
Not only versatile but also portable.

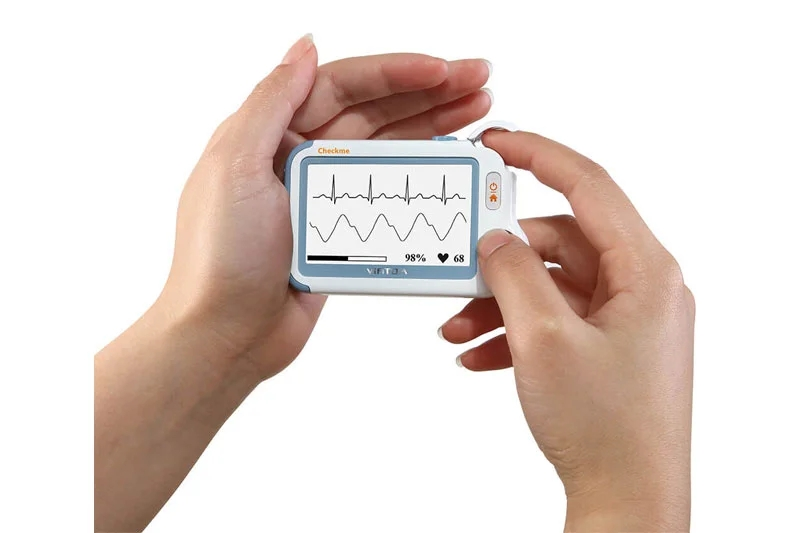

All-in-one vital signs monitor for doctors, caregivers, and patients. Integrates ECG/EKG, ECG Holter, SpO2 (Oxygen Saturation), PI (Perfusion Index), NIBP (Non-Invasive Blood Pressure), Body Temperature, and Pedometer into one palm-sized device.
Medical grade accuracy and reliability.
Cable and cable-free operation for EKG and SpO2 checks with highly sensitive built-in sensors and included external accessories.
24-hour EKG Holter continuous testing.
10-hour SpO2 monitoring for sleep apnea or OSA screening.

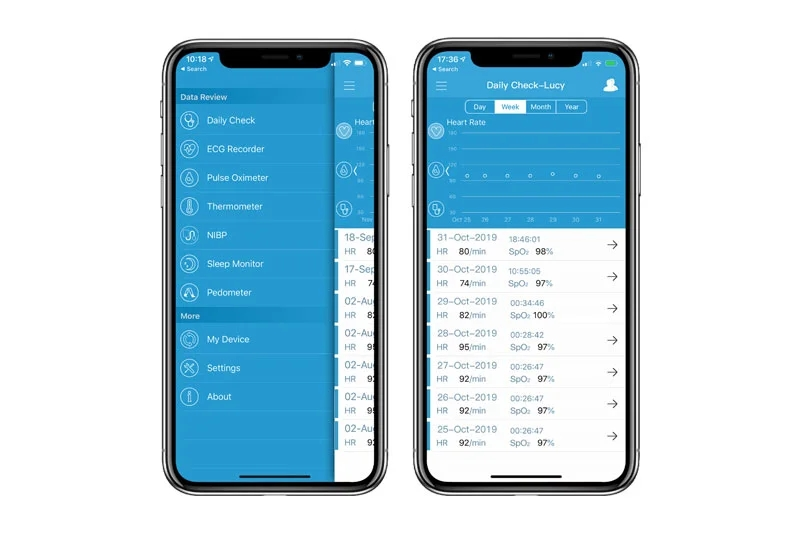

Conveniently manage detailed vital sign data with the free iOS/Android APP.

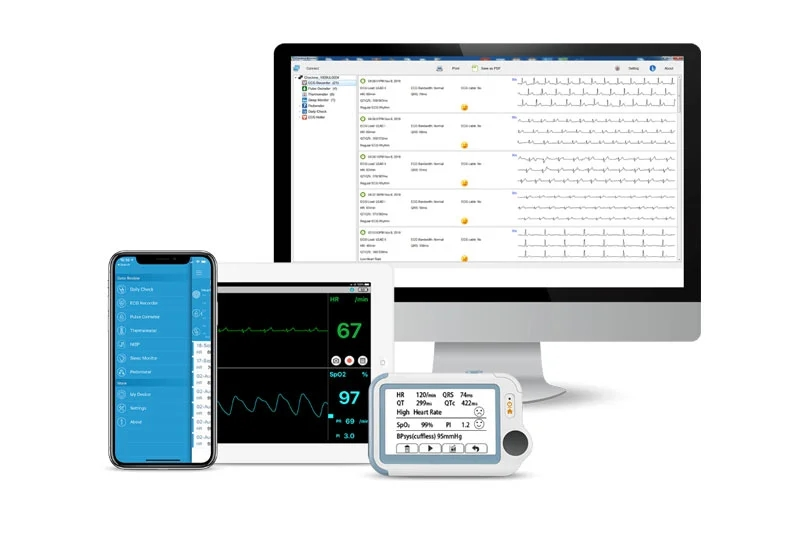

Transfer data to free Windows PC software; export and print reports; gain insight into health metrics.
Multi-user system for more patient accounts.
| Specifications | |
| OVERALL | |
| WEIGHT | 2.8oz / 80g (main unit) |
| DEVICE DIMENSIONS | 7.00'' x 4.84'' x 2.95'' (main unit) |
| DISPLAY | 2.7'' touch screen, HD |
| CONNECTOR | Micro D connector |
| WIRELESS CONNECTIVITY | Built-in Bluetooth dual mode, support 4.0 BLE |
| BATTERY TYPE | Rechargeable lithium-polymer battery |
| CHARGE TIME | Less than 2 hours to 90% |
| EKG | |
| LEAD TYPE | Integrated ECG electrodes, External ECG cable and electrodes |
| LEAD SET | Lead I, lead II |
| MEASUREMENT MODE | Episode, continuous |
| SAMPLING RATE | 500Hz |
| SAMPLING ACCURACY | 16 bit |
| DISPLAY GAIN | 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV10 mm/mV, 20 mm/mV |
| SWEEP SPEED | 25 mm/s |
| ACCURACY | ±2 bpm or ±2%, whichever is greater |
| HR MEASUREMENT RANGE | 30 to 250 bpm |
| ST MEASUREMENT RANGE | -0.5 to +0.5 mV |
| BAND WIDTH | 0.05 to 40 Hz |
| ELECTRODE OFFSET POTENTIAL TOLERANCE | ±300 mV |
| MEASUREMENT SUMMARY | Heart rate**, QRS duration, ST segment***, QT/QTc Rhythm analysis (Regular EKG Rhythm, High Heart Rate, Low Heart Rate, High QRSValue, High ST Value***, Low ST Value***, Irregular EKG Rhythm,Unable to analyze) |
| SpO2 | |
| TYPE STANDARD | Standards |
| SpO2 RANGE | 70% to 100% |
| MEASUREMENT MODE | Episode, continuous |
| SpO2 ACCURACY (ARMS) | 80-100%: ±2%, 70-79%: ±3% |
| PR RANGE | 30 to 250 bpm |
| PR ACCURACY | ±2 bpm or ±2%, whichever is greater |
| PI RANGE | 0.5-15 |
| MEASUREMENT SUMMARY | SpO₂, PR, PI, Summary (Normal Blood Oxygen, Low Blood Oxygen, Unable to analyze) |

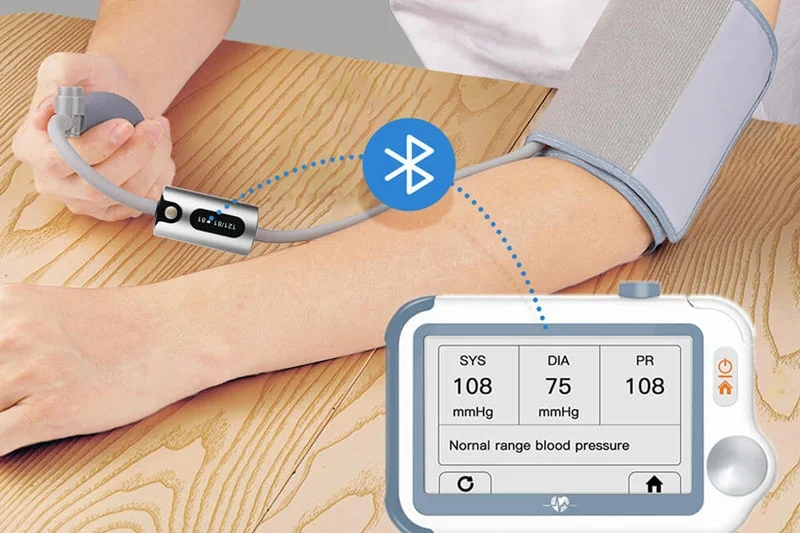

| BLOOD PRESSURE | |
| MEASUREMENT METHOD | Cuff-free non-invasive technology |
| MEASUREMENT SUMMARY | Systolic pressure based on individual calibration coefficient |
| BLOOD GLUCOSE | |
| MEASUREMENT RANGE | 20 to 600mg/dL (1.1 to 33.3 mmol/L) |
| SLEEP MONITOR | |
| MONITORING TIME | Up to 10 hours |
| DATA STORAGE | Store SpO2 and pulse rate |
| MEASUREMENT SUMMARY | Total duration,<90% STAT, Average saturation, Lowest saturation, Summary (No abnormal detected, blood oxygen drop detected, Unable to analyze) |
| PEDOMETER | |
| RANGE | 0 to 99999 steps |
| TIMER | 0 to 1999 minutes |
| CALORIES | 0.00 to 9999.99 kcal |
| FAT | 0.00 to 199.99 g |
| DISTANCE | 0.00 to 999.99 km |
