Lepu Medical Grade 18 Leads Smart Portable ECG Monitor T180 with Printer AI Analysis Diagnosis Tablet Touch Screen

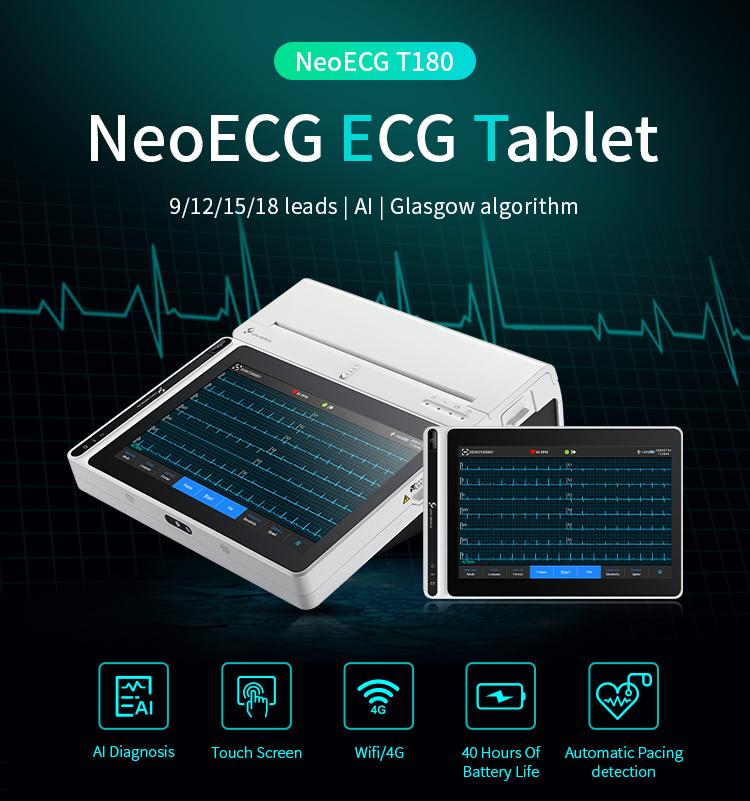

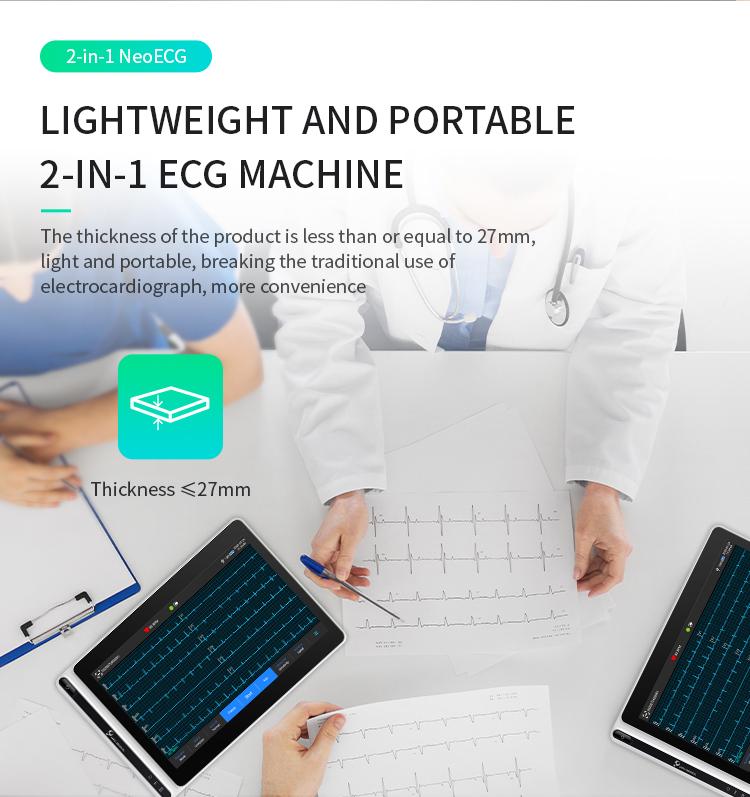

NeoECG is the latest tablet smart ECG machine from Lepu Medical. This ECG machine is divided into a 10.1-inch version T180 with a printing dock and a 7-inch version S120 with a portable Bluetooth printer, both machines adopt the Android operating system and are also equipped with high-resolution capacitive touch screens. lightweight and portable, which is completely satisfied the needs of families, clinics, medical institutions, hospitals, and other scenarios.

  • at home health monitoring devices
  • ecg ai
  • automatic vital sign machine
  • continuous health monitoring devices
  • ecg ai analysis
  • continuous vital signs monitor
  • continuous patient monitoring device
  • ai ecg interpretation
  • 18 lead ecg
  • 18 lead ecg used for
  • digital vital signs machine
  • smart ecg machine
  • smart ecg monitor
  • lepu 18 lead ecg used for
  • lepu medical ai ecg
  • at home health monitoring devices
  • ecg ai
  • automatic vital sign machine
  • continuous health monitoring devices
  • ecg ai analysis
  • continuous vital signs monitor
  • continuous patient monitoring device
  • ai ecg interpretation
  • 18 lead ecg
  • 18 lead ecg used for
  • digital vital signs machine
  • smart ecg machine
  • smart ecg monitor
  • lepu 18 lead ecg used for
  • lepu medical ai ecg

Lepu Medical Grade 18 Leads Smart Portable ECG Monitor T180 Illustration

Electronic Health Monitoring Devices

Electronic Medical Monitors

Electronic Vital Sign Machine

Electronic Vital Sign Monitors

Electronic Vital Signs Monitor

Handheld Patient Monitor

Handheld Vital Sign Monitor

Health Monitor Touch Screen

Health Monitoring Devices for Home

Healthcare Monitoring Devices

Heart Monitor Medical

Heart Monitoring Device for Home

Health Monitoring Devices at Home


Features of Lepu Medical Grade 18 Leads Smart Portable ECG Monitor T180 with Printer AI Analysis Diagnosis Tablet Touch Screen


  • High Accuracy Rate: Tested by 50,000,000 training data and 1,000,000 independent measured data, the average accuracy rate of the AI-ECG platform reach 95.2%.

  • High Analysis Speed: Just take 1s for automatically resting ECG analysis. The time saved can reduce the overall time of clinical ECG analysis.

  • Comprehensive Diagnosis: Support 16 types of cardiac classification, and 104 types of ECG diagnostic classifications.

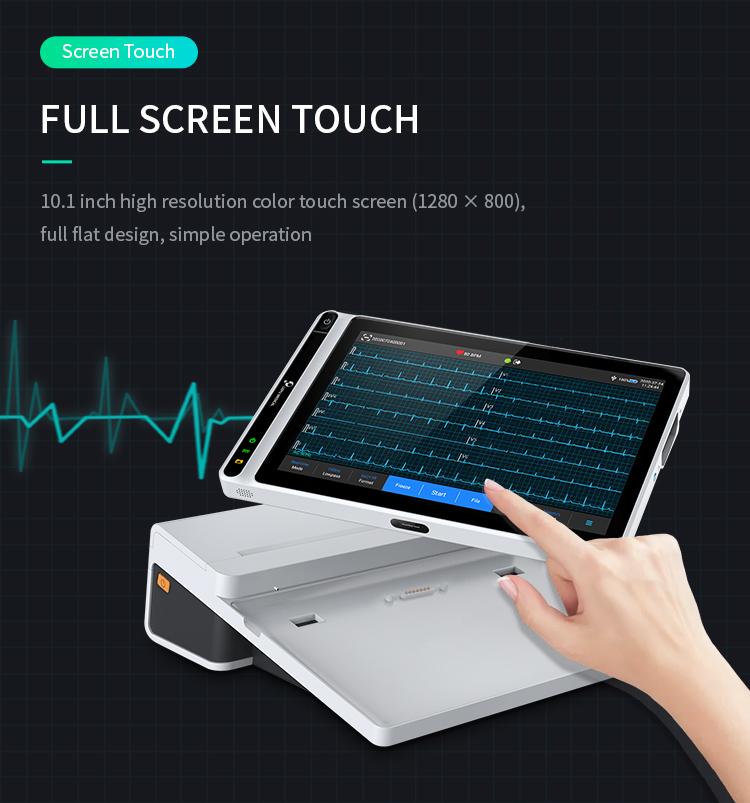

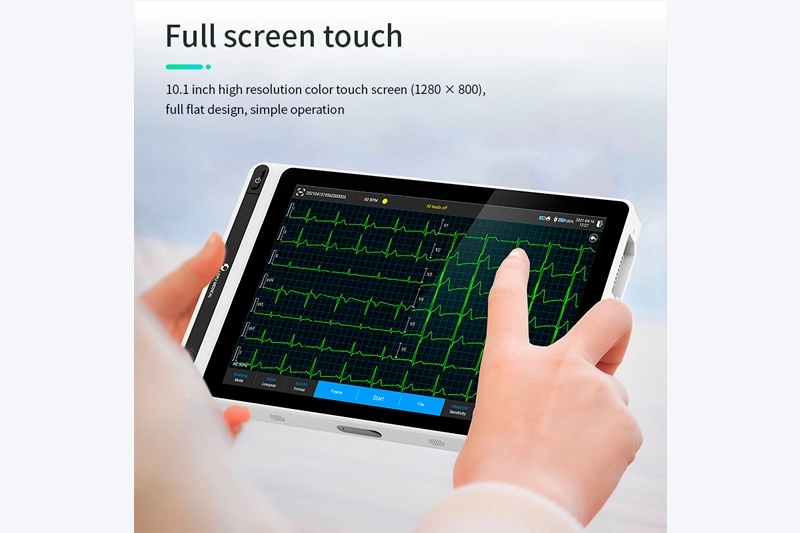

  • 10.1'' high-resolution color touch screen, easy to operate. Portable design, compact in size.

  • Support simultaneous acquisition and display of 18-channel waveforms, as well as cardiac/heart rate detection.

  • Support wireless transmission of ECG data via WiFi and mobile network.

  • Can be powered by an external DC power supply, and a built-in rechargeable lithium battery.

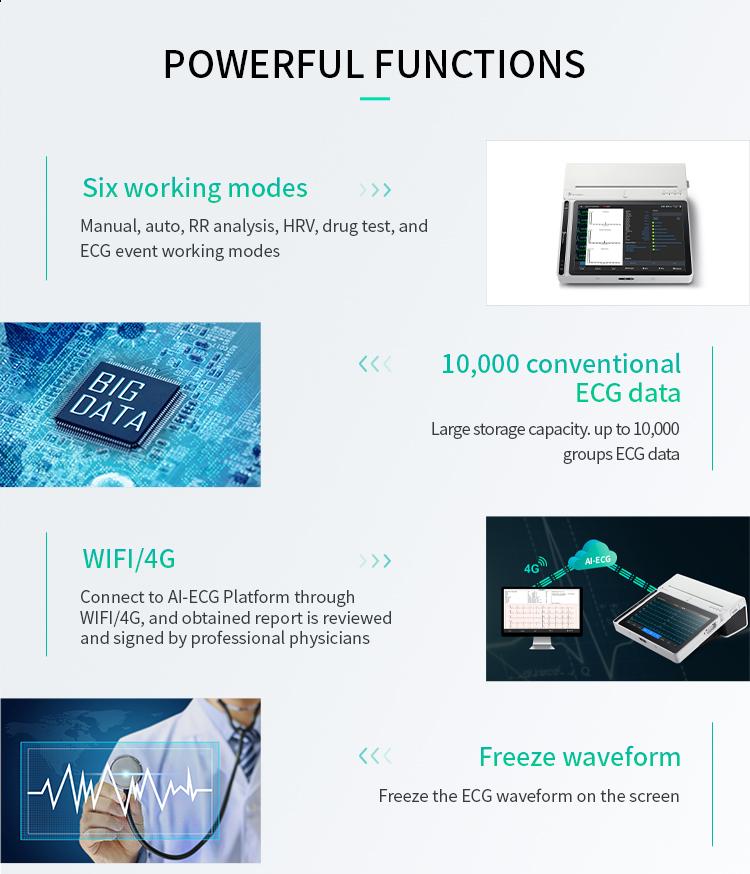

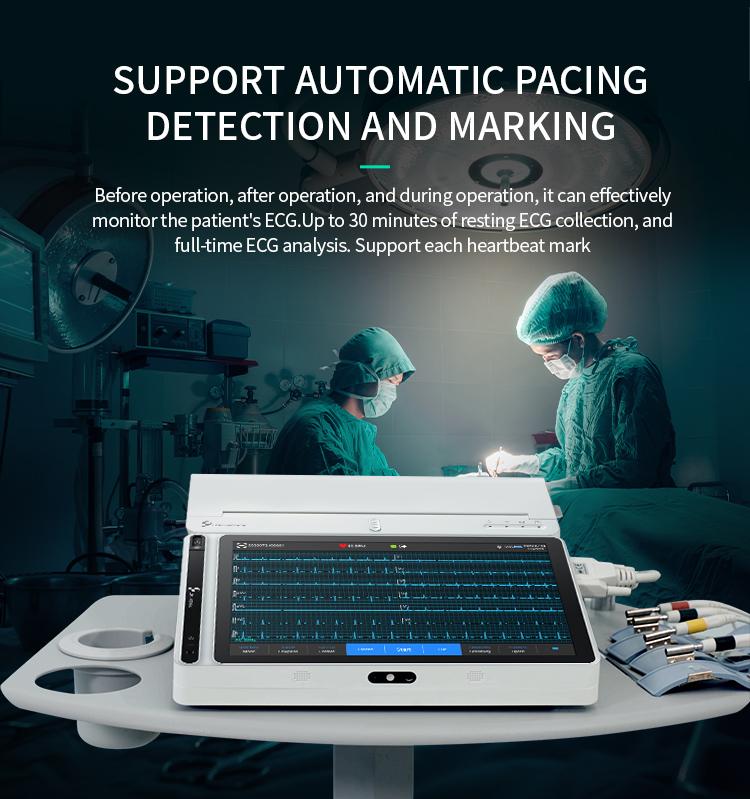

  • Support auto, RR analysis, HRV, medicine test, and ECG event mode.

  • Provide 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling.

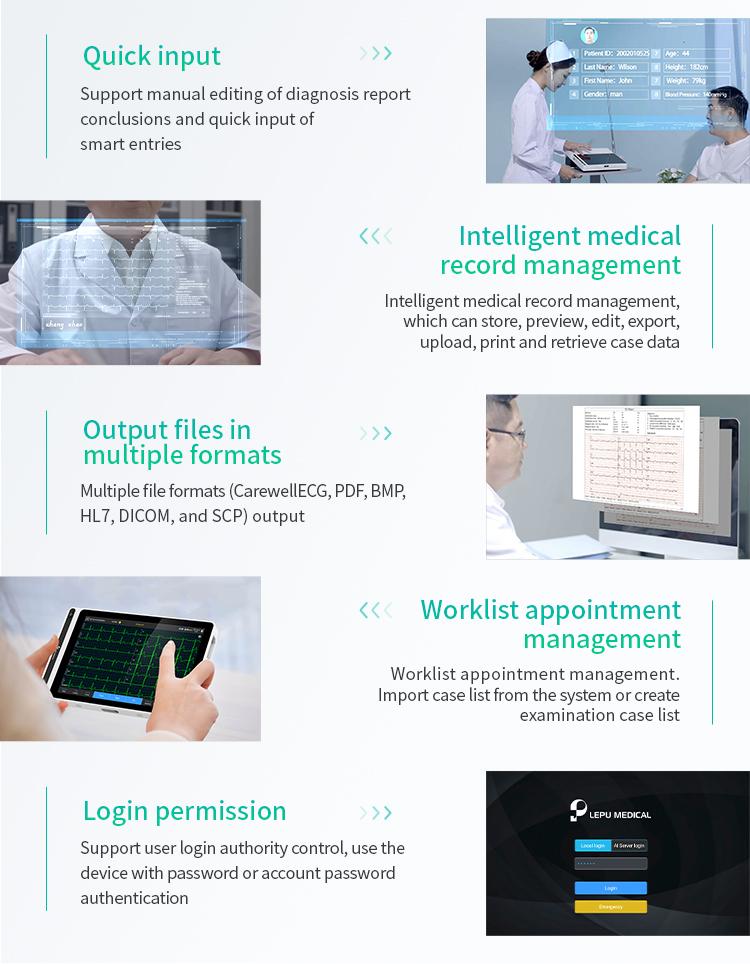

  • Input patient information via a virtual alphanumeric keyboard and barcode scanning.

  • Freeze the ECG waveform on the screen.


Technical Specification of Lepu Medical Grade 18 Leads Smart Portable ECG Monitor T180 with Printer Ai Analysis Diagnosis Tablet Touch Screen


ModelT180
StructureHostBase
Size

272.6mm x181.2mm x 25.8mm

(Length x Width x Height)

274mm x 288 mm x 111.2 mm

(Length x Width x Height)

Weight1.2 Kg (including main unit, battery, without accessories)About 2.5 kg (including battery)
Built-in rechargeable lithium ion batteryRated voltage: 7.4VRated voltage: 14.4V
Rated capacity: 5000 mAhRated capacity: 4400 mAh
Power supply time: When only the internal battery is used, the standby time is more than 72 hours, and the continuous working time is more than 12
hours under normal circumstances after the battery is fully charged.
(collected every 5 minutes)
Charging time: Charge at least 5 hours before using the battery for the first time; when the battery is turned off and charged, the exhausted battery will be charged to 90% in less than 4 hours and fully charged in less than 5 hours.
Screen10.1-inch, color LCD touch screen resolution: 1280 × 800 pixels
AC powerRated voltage: 100 - 240 v~
Rated frequency: 50/60Hz

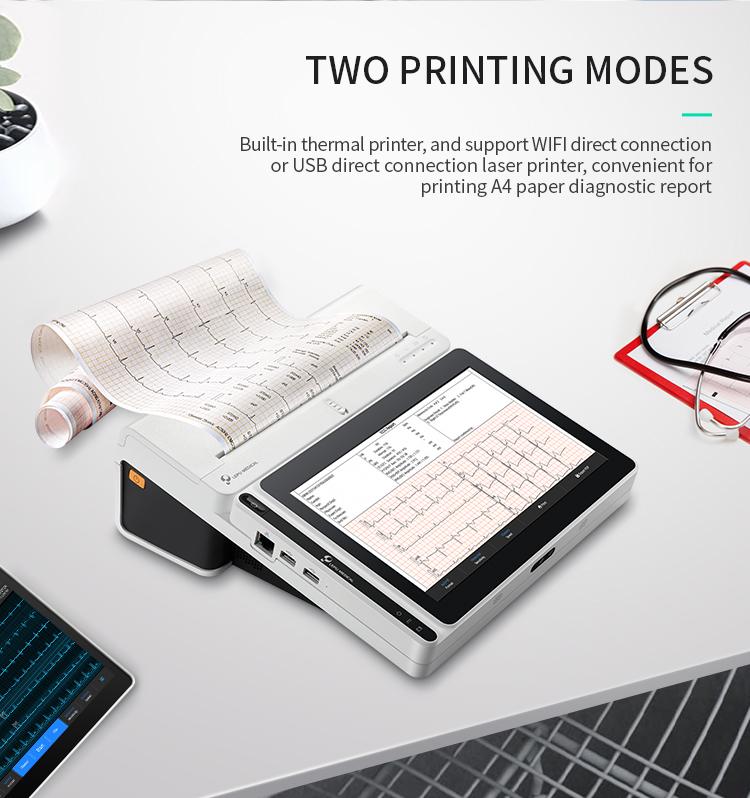

TypeThermal recorder
Recording paperReel thermal recording paper, paper width: 216 mm
Paper driving rate5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, and 50 mm/s. The error is not greater than ±3%
Number of waveformsRecord up to 18 waveforms at the same time
Print resolutionVertical resolution: 8 dots/mm Horizontal resolution: 40 dots/mm (Paper driving rate 25 mm/s)
Calculation methodPeak value detection
Measuring range30 bpm - 300 bpm
Measurement accuracy±1 bpm or ±1%, whichever is the largest
Lead9-lead, 12-lead, 15-lead or 18-lead simultaneous acquisition and analysis
A/D conversion24-bit
Sampling rate32000 dots/s
Common mode rejection ratio (CMRR)≥140 dB (Power frequency notch is turned on) ≥120 dB (Powerfrequency notch is turned off)
Time constant≥5s
Frequency responseBased on 10 Hz, (0.01Hz- 350Hz)+0.4dB-3.0 dB
SensitivityAuto, 2.5 mm/mv, 5 mm/mv, 10 mm/mv, 20 mm/mv, and 40 mm/mV. The error is not more than ±5%
FilterAC filter: 50 Hz, 60 Hz, and off
EMGfilter: 25 Hz, 35Hz, 45 Hz, and off
Baseline drift filter: 0.01 Hz, 0.05 Hz, 0.32 Hz, and 0.67Hz
Low pass filter: 75 Hz, 100 Hz, 150 Hz, 300 Hz, and off
Time base5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s and 50 mm/s.
Selection and accuracyThe allowable time measurement error within the range of 0.2s- 2.0s does not exceed ±3%.
Input impedance≥100 MΩ (10 Hz)
Input loop current≤10 nA
Calibration voltagelmV±2%
Polarization voltage±900 mV, the waveform amplitude change is ±5%
System noise≤12.5 µV
Amplitude quantification0.95 µV/LSB
Electrode polarization recovery time<10 s
Pace pulse displayDisplay ECG signal for pacing pulses with an amplitude of±2 mV-±700 mv, a duration of 0.1 ms- 2.0 ms, a rise time of less than 100 µs, and a frequency of 100/min.
Minimum detection20 µVp-p
