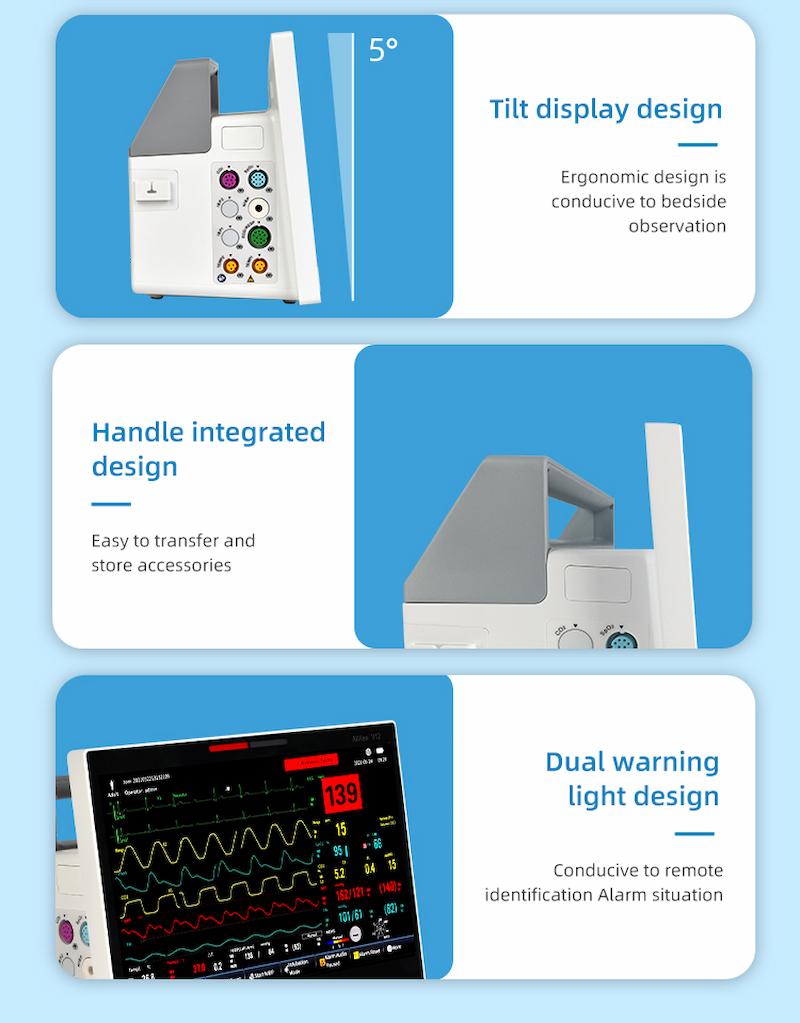

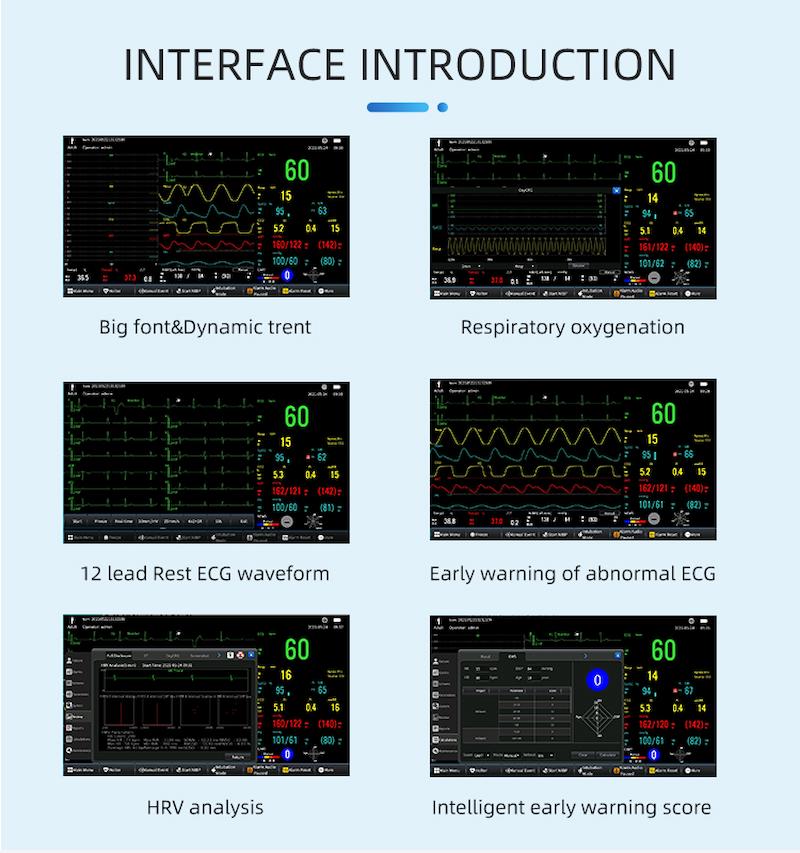

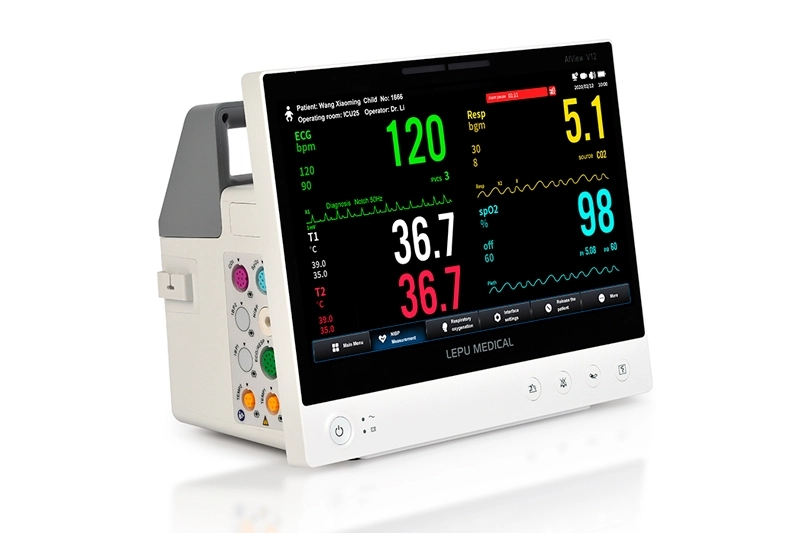

The new generation of Lepu AI intelligent multi-parameter monitor, which is divided into a 13.3-inch version V12 and an 11.6-inch version V10, with hardware ergonomic design and software flat interactive design, will meet the different needs in different departments of hospitals. It changes the working mode of the medical staff and brings them an unprecedented user experience.

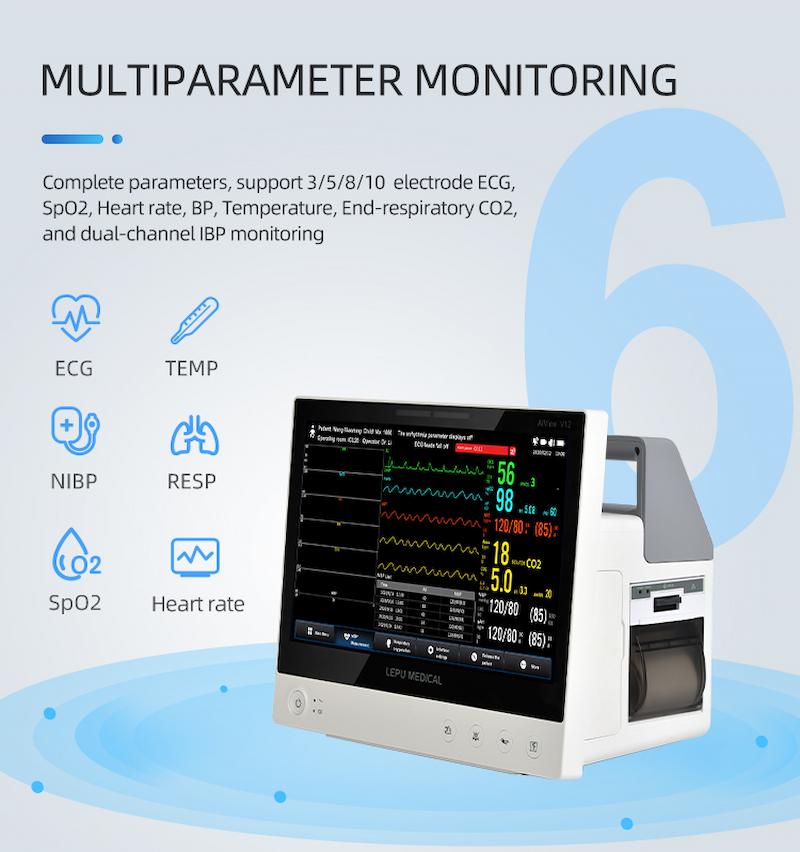

Highly accurate measurement of SpO2, pulse rate, ECG, NIBP (non-invasive blood pressure), body temperature, and respiration.
Optional functions: high-precision measurement of EtCO2, CSI (brain state index).

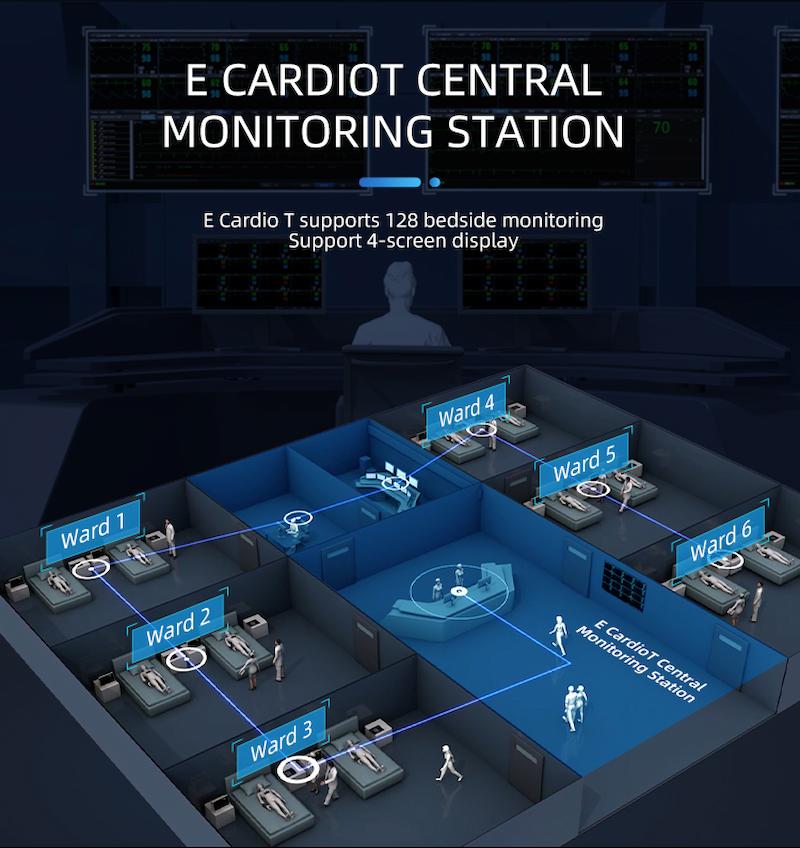

Supports use with Central Monitoring System (CMS).
HL7 protocol, Bed to bed view and 12-lead ECG available.
Support network interface, USB interface, VGA, serial port, analog output, and synchronous defibrillation.
Data export and software upgrade.
| Technical Specification | |
| ECG | |
| Measurement range | 15bpm～350bpm |
| Measurement accuracy | ±1% or ±1 bpm, whichever is greater |
| Waveform sweeping speed | 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s, error: ≤ ±5% |
| RESP | |
| Measurement method | Thoracic impedance |
| Respiration rate measurement range | Adult: 0 rpm～120 rpm Pediatric and neonate: 0 rpm～150 rpm |
| Respiration rate measurement accuracy | 7～120 rpm: ±2 rpm or ±2%, whichever is greater 0～6 rpm: not defined |
| TEMP | |
| Measuring range | 0°C～50°C (32°F～122°F) |
| Measuring accuracy | Within the range of 1°C～50°C, the maximum allowable error is ±0.1°C |
| SPO2 | |
| Measurement range | 0%～100% |
| Measurement accuracy | 70%~100%: ±2 50%~69%: ±3% 0%~49%: not defined |
| PR measurement range | 30bpm～250bpm |
| PR measurement accuracy | ±2bpm or ±2%, whichever is greater |
| NIBP | |
| Measurement method | MANU, AUTO, STAT, Series |
| Measurement range | 0 mmHg～300 mmHg (0.0 kPa～40.0 kPa) |
| Measurement accuracy | ±3 mmHg (±0.4 kPa) |
| IBP | |
| Measurement range | -50mmHg～ 300mmHg (-6.7kPa～ 40.0kPa) |
| Measurement accuracy | ±3mmHg(±0.4kPa) |
| Resolution | 1mmHg (0.1kPa) |
| ETCO2 | |
| Measurement mode | Sidestream and mainstream |
| Measurement range | 0 mmHg～150 mmHg (0 kPa～20.0 kPa) |
| Measurement accuracy | 0 mmHg～40 mmHg (0 kPa～5.3 kPa), the error is ±2 mmHg (±0.26 kPa) 41 mmHg～70 mmHg (5.5 kPa～9.3 kPa), the error is ±5% 71 mmHg～100 mmHg (9.4 kPa～13.3 kPa), the error is ±8% 101 mmHg～150 mmHg (13.4 kPa～20.0 kPa), the error is ±10% |
| Other specification | |

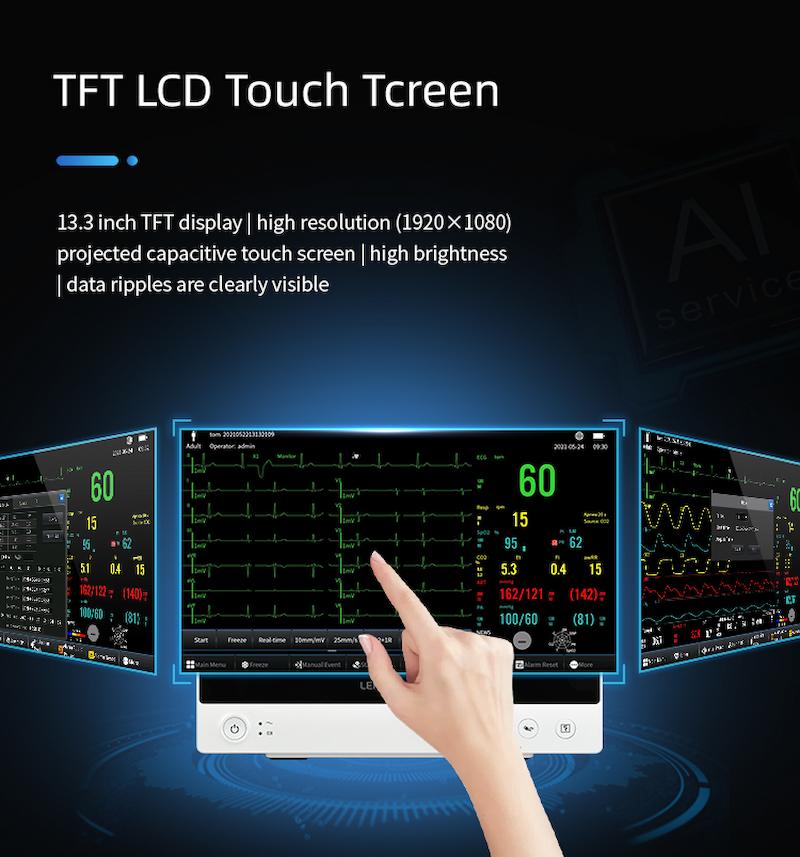

| Built-in lithium battery | 10.95 V / 2750 mAh 10.95 V / 5500 mAh (option) Display: 13.3 inch TFT display |
| Standard configuration | |
| ECG, Respiration, SpO2, PR, NIBP, Temperature, WIFI | |
| Options | |

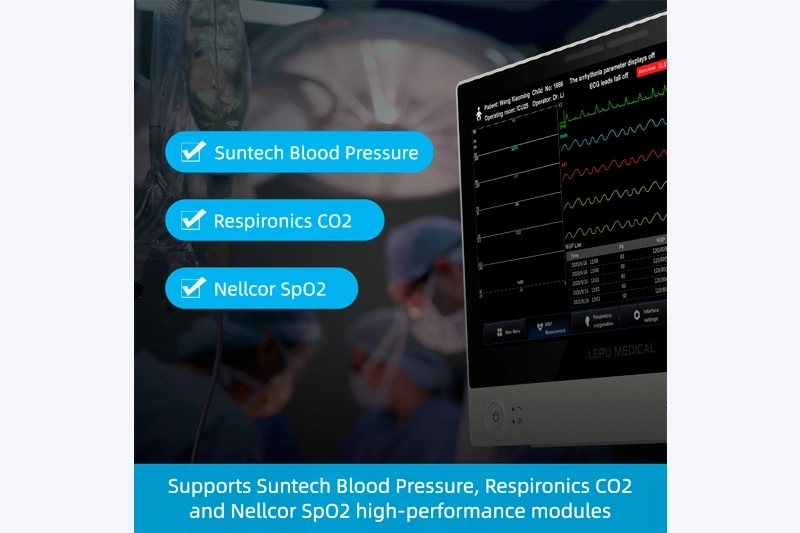

| 2-IBP, EtCO2, Nellcor SpO2, SunTech NIBP, 12-lead ECG, Work station, AI Module | |
