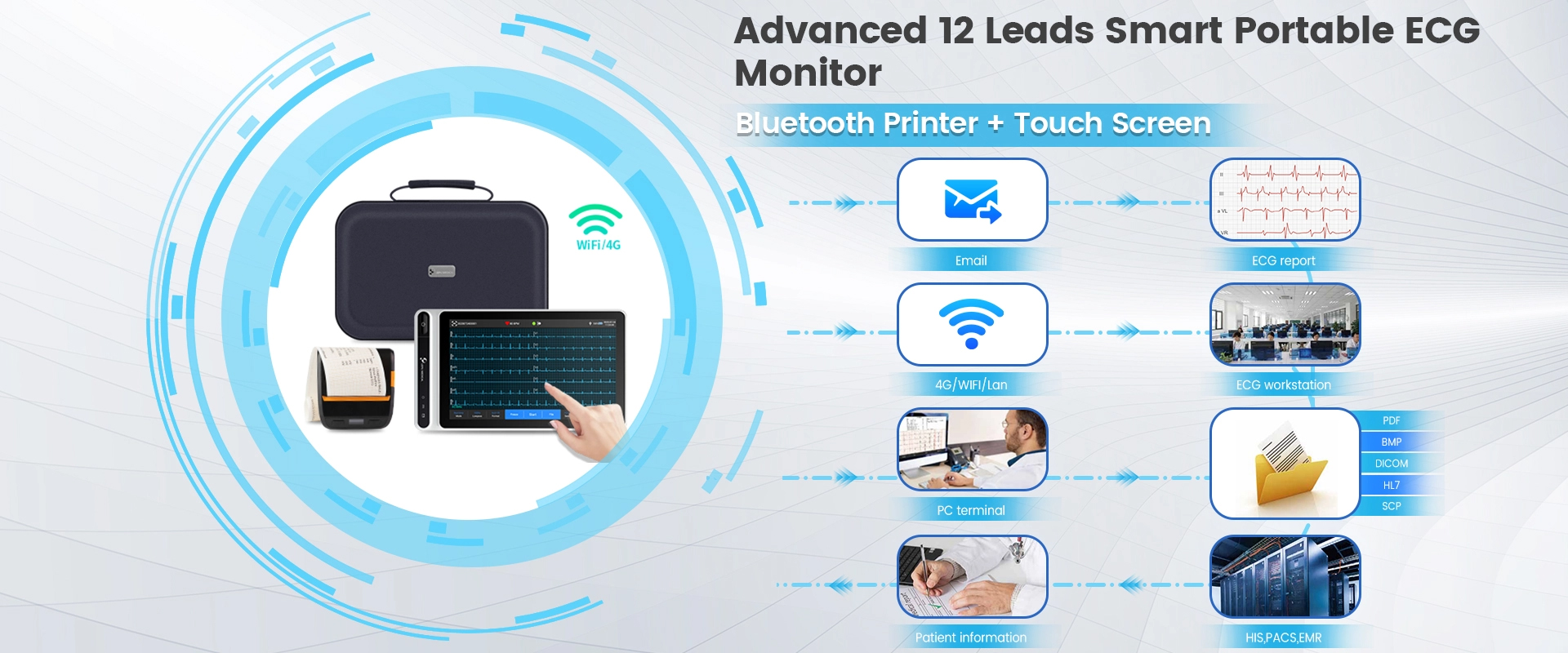

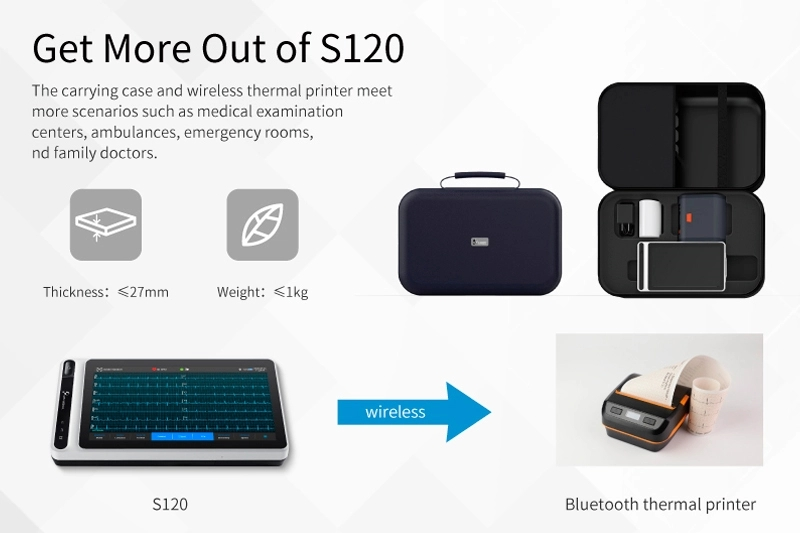

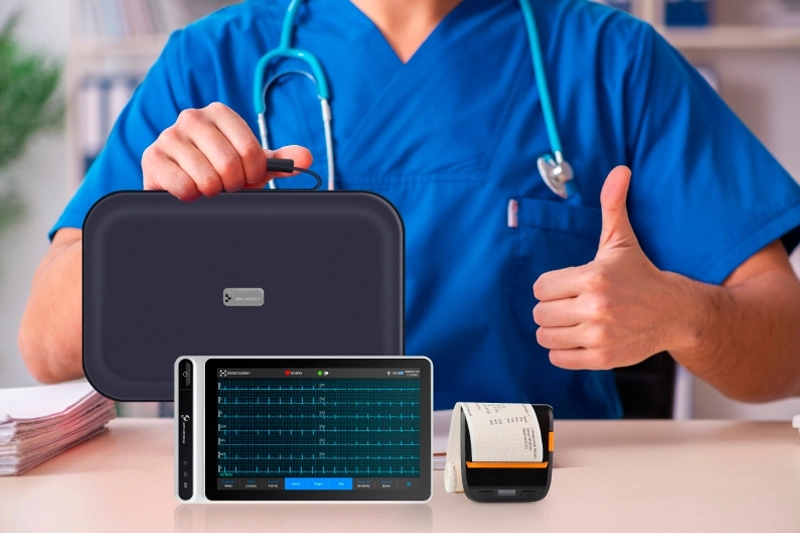

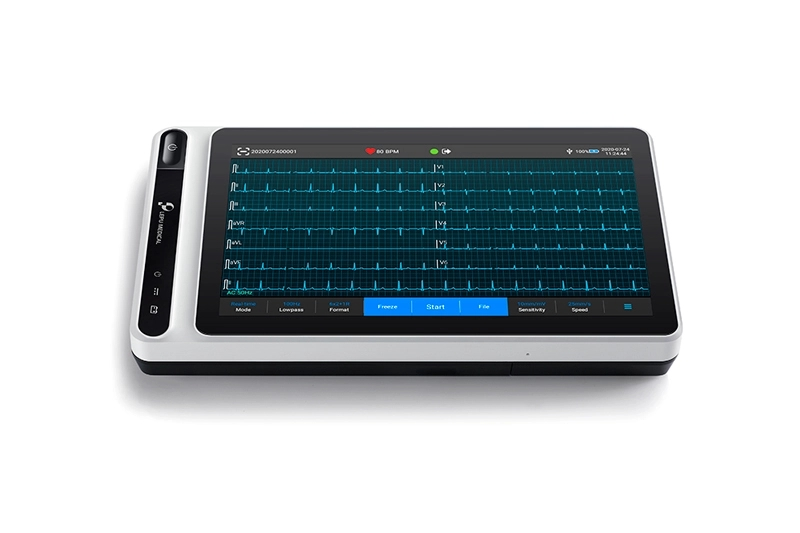

NeoECG is the latest tablet smart ECG machine from Lepu Medical. This ECG machine is divided into a 7-inch version S120 with a portable Bluetooth printer and a 10.1-inch version T180 with a printing dock, both machines adopt the Android operating system and are also equipped with high-resolution capacitive touch screens. lightweight and portable, which is completely satisfied the needs of families, clinics, medical institutions, hospitals, and other scenarios.

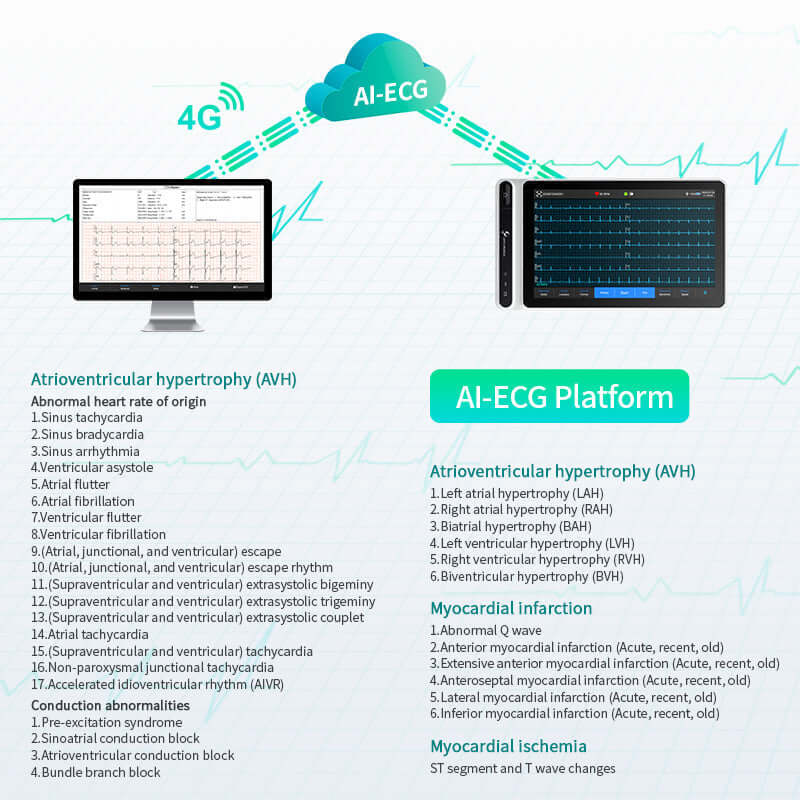

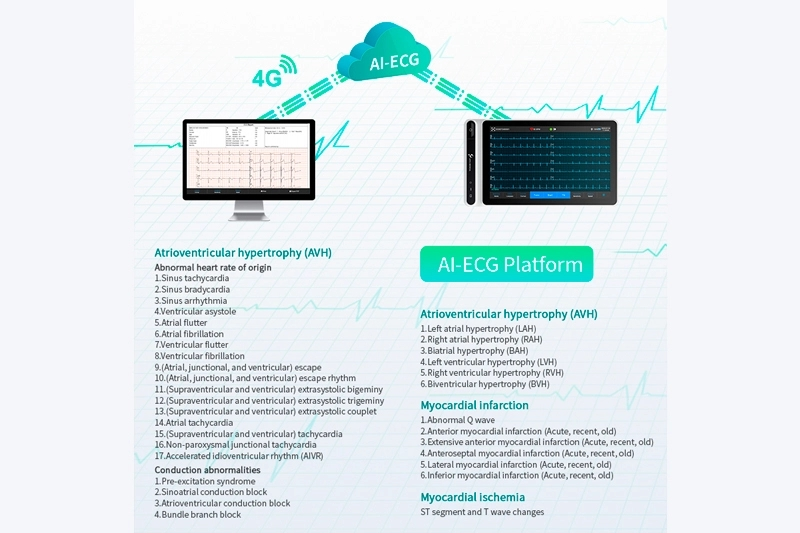

High Accuracy Rate: Tested by 50,000,000 training data and 1,000,000 independent measured data, the average accuracy rate of the AI-ECG platform reach 95.2%.
High Analysis Speed: Just take 1s for automatically resting ECG analysis. The time saved can reduce the overall time of clinical ECG analysis.
Comprehensive Diagnosis: Support 16 types of cardiac classification, and 104 types of ECG diagnostic classifications.

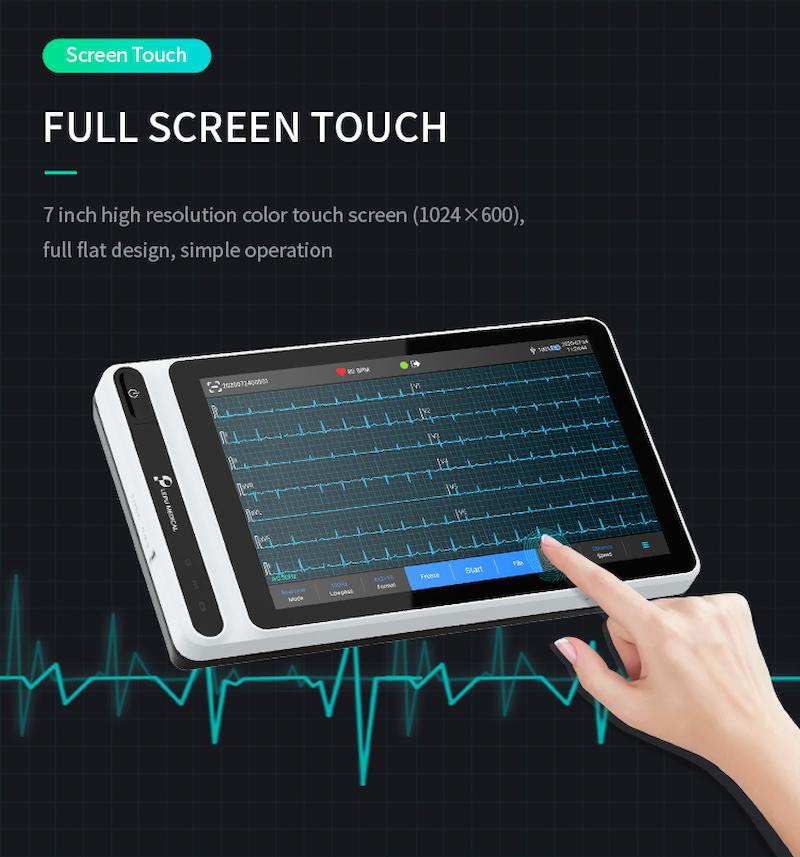

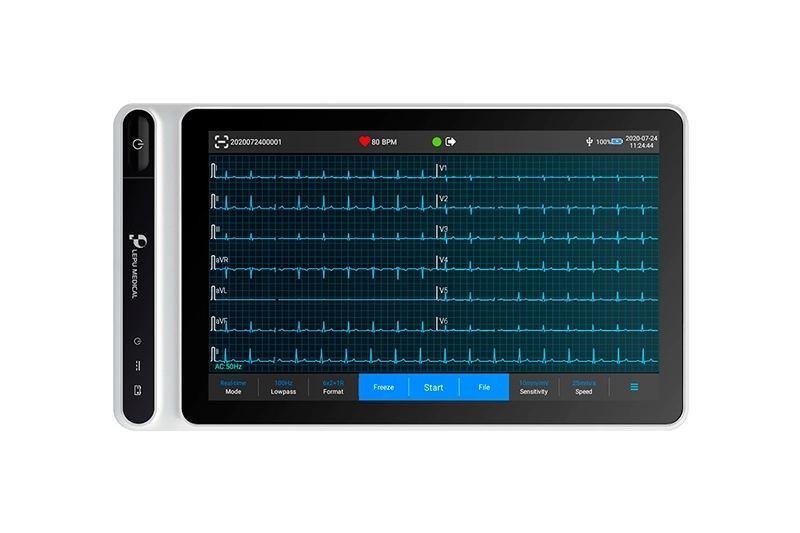

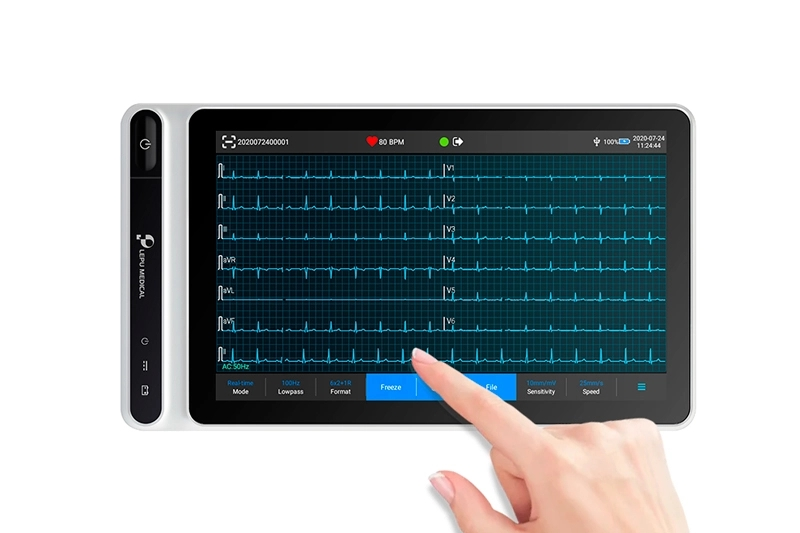

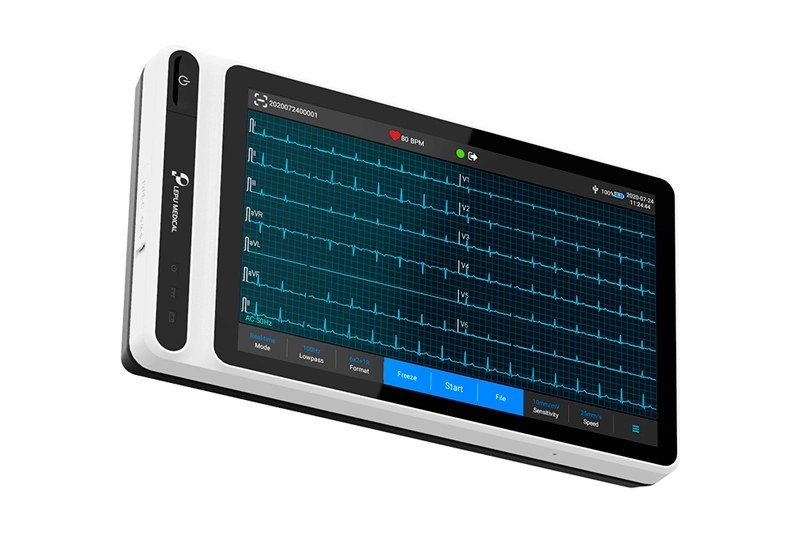

7" high-resolution color touch screen, easy to operate. Portable design, compact in size.
Support simultaneous acquisition and display of 9-channel and 12-channel waveforms, as well as cardiac/heart rate detection.

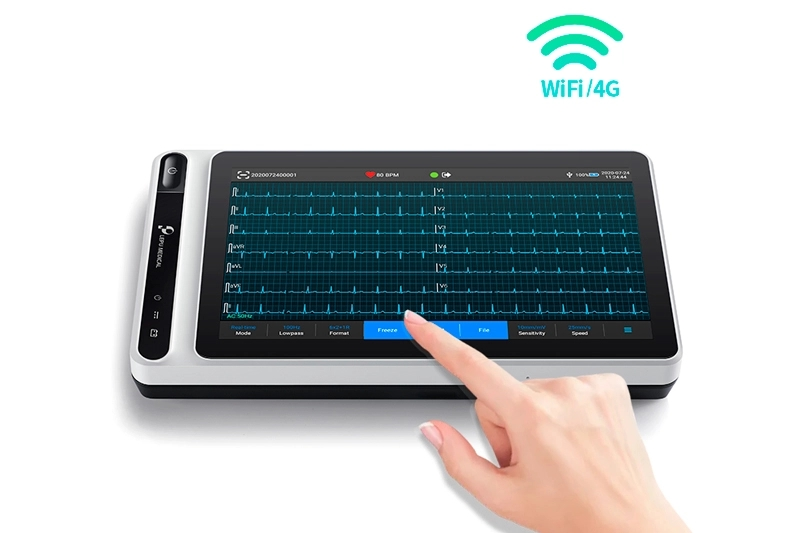

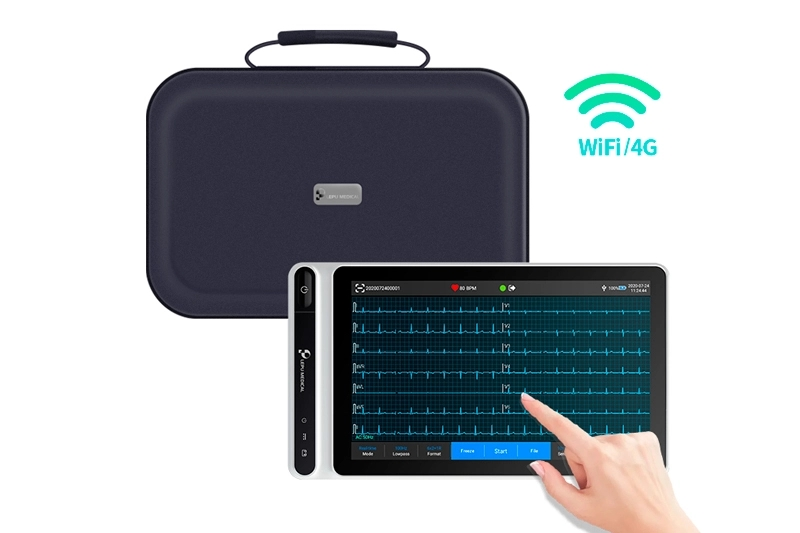

Support wireless transmission of ECG data via WiFi and mobile network.
Can be powered by an external DC power supply, and a built-in rechargeable lithium battery.
Support auto, RR analysis, HRV, medicine test, and ECG event mode.
Provide 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling.

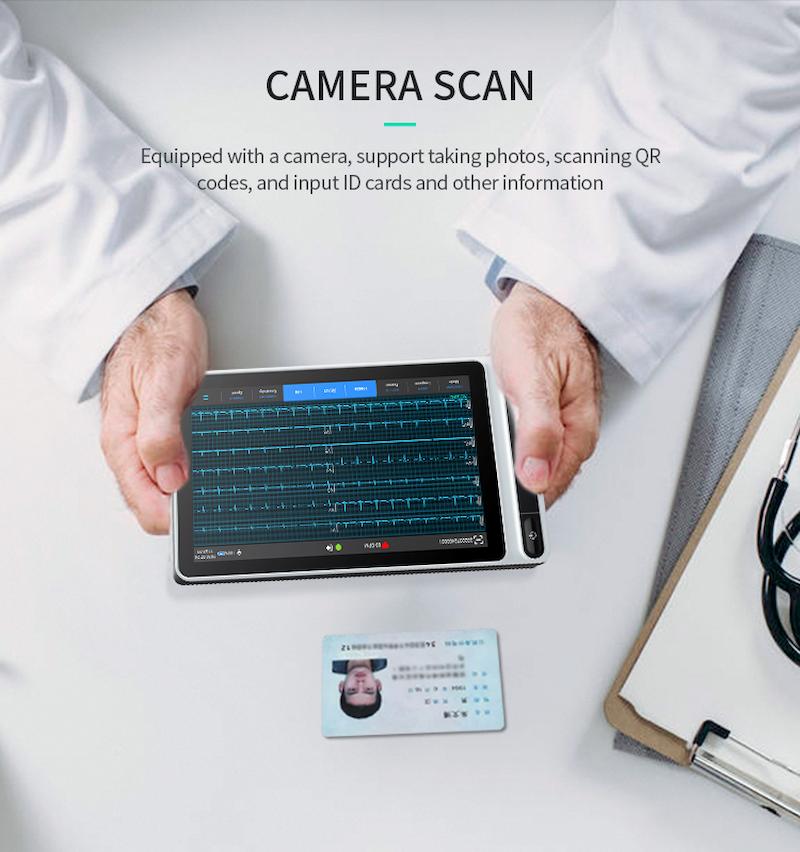

Input patient information via a virtual alphanumeric keyboard and barcode scanning.
Freeze the ECG waveform on the screen.
Technical Specification | ||
Main unit | HR range | 30bpm~300bpm |
Accuracy | ±1 | |
Leads | 9,12 lead synchronous acquisition | |
A / D conversion | 24 bits | |
Sampling rate | 32000 samples/Sec | |
Common mode rejection ratio | ≥140dB (AC filter on) ≥120dB (AC filter off) | |
Time constant | ≥5s | |
Frequency response | 0.01HZ~350HZ (+0.4db-3.0db) | |
Sensitivity | Auto, 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV, less than ±5% error | |
Filter | AC filter: 50Hz, 60Hz, Off | |
EMG filter: 25Hz, 35Hz, 45Hz, Off | ||
ADS filter: 0.01 Hz, 0.05 Hz, 0.32 Hz, 0.67 Hz | ||
Low pass filter: 75Hz, 100Hz, 150Hz, 300Hz, Off | ||
Paper speed | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s and 50mm/s, less than ±3% error | |
Input Impedance | ≥100MΩ (10Hz) | |
Input Circuit Current | ≤10nA | |
Calibration voltage | 1mV±2% | |
Depolarization voltage | ±900mV, ±5% | |
Noise | ≤12.5μV | |
Amplitude quantisation | 0.95 μV/LSB | |
Recovery time after defibrillation discharge | <10s | |
Pacer pulse display | Pacing pulse with amplitude of ±2mV~±700mV, duration of 0.1ms~2.0ms, A-5 rise time of less than 100µs, and frequency of 100/min can be displayed on the ECG recording. | |
Minimum detectable signal | 20μVp-p | |

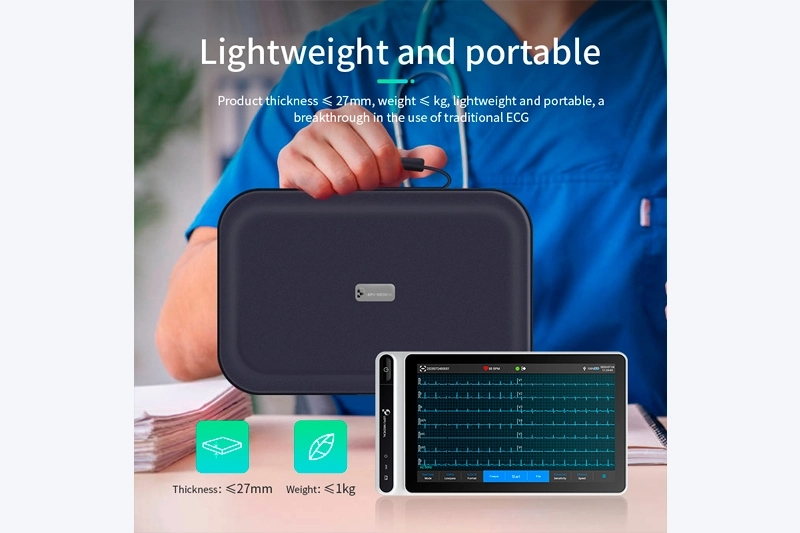

Size & Weight | 7" Tablet | Size: 197mm(L) * 112.4mm(W) * 26.1mm(H), Net Weight: 0.8Kg |
Analysis algorithm | Glasgow |
