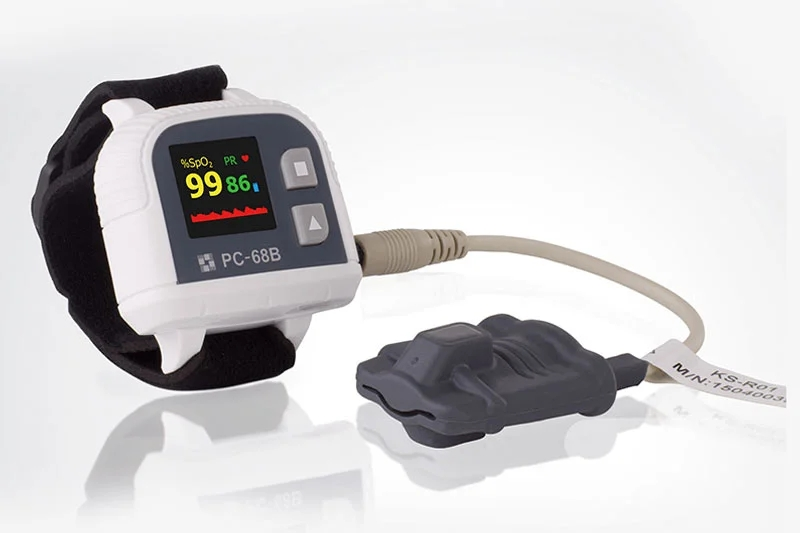

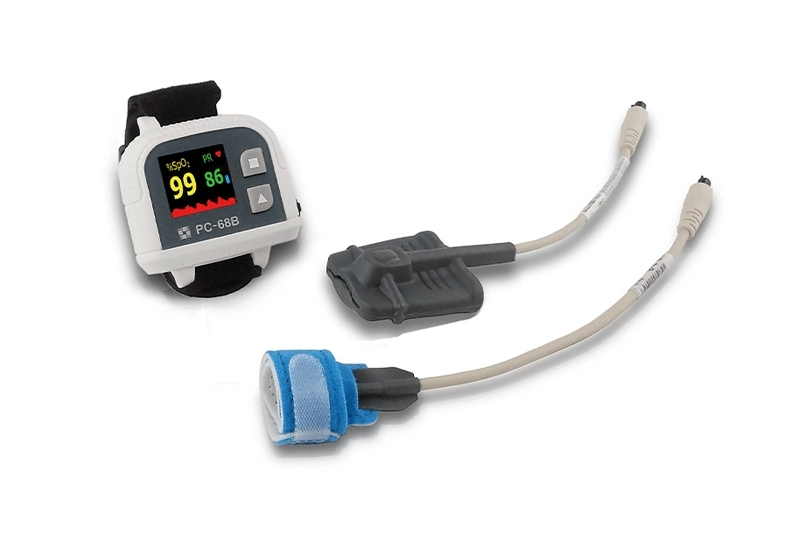

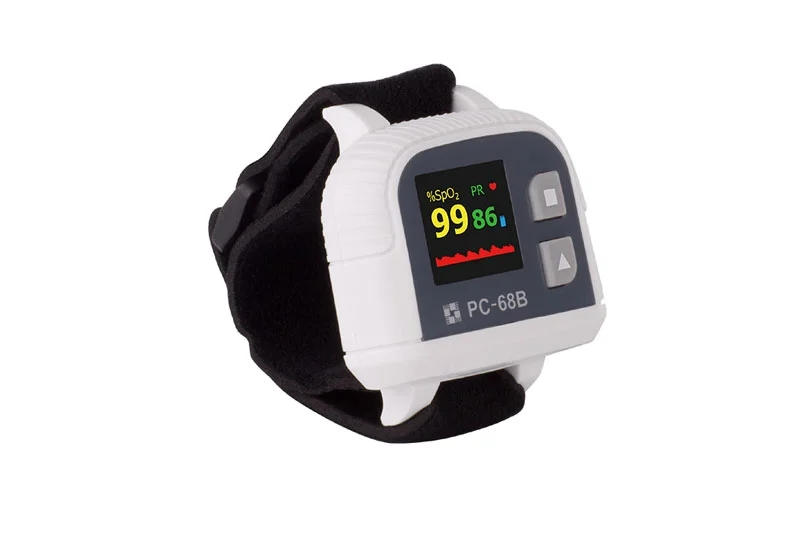

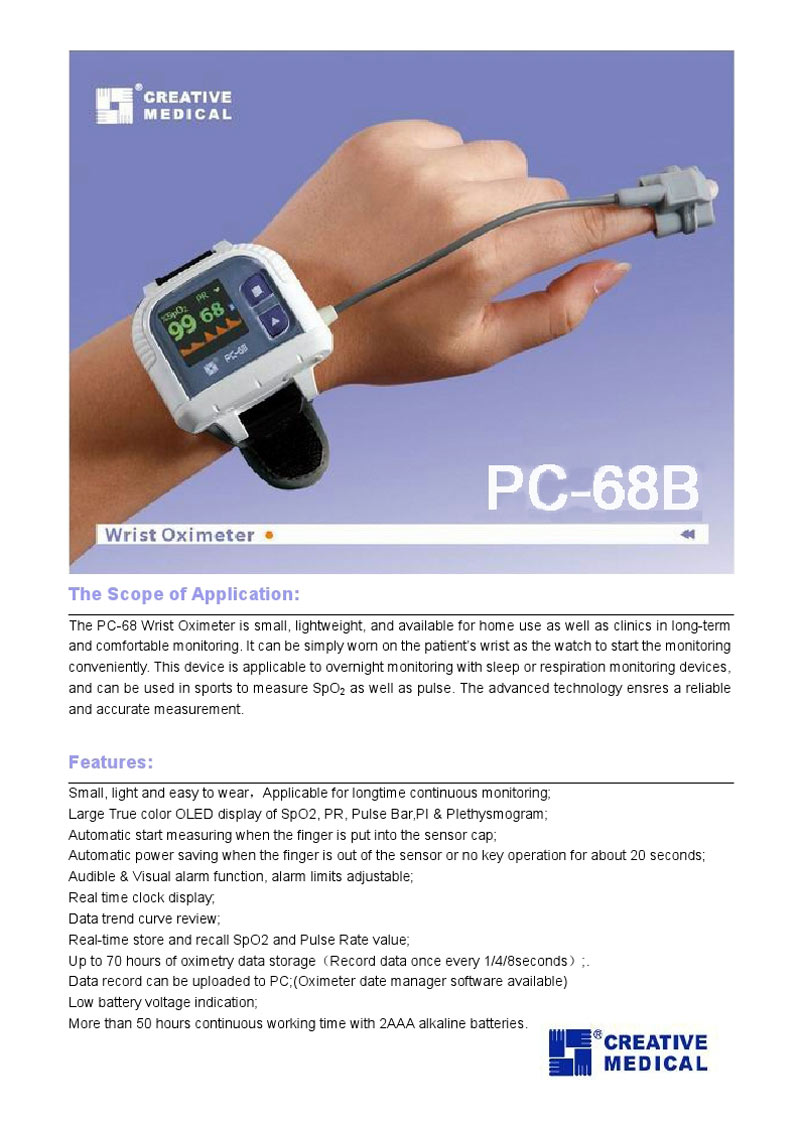

The Lepu Medical Grade PC-68B Wrist Oximeter is small, lightweight, and available for home use as well as clinics in long-term and comfortable monitoring. It can be worn on the patient's wrist as a watch to start the monitoring conveniently. This device applies to overnight monitoring with sleep or respiration monitoring devices and can be used in sports to measure SpO2 and pulse. The advanced technology ensures reliable and accurate measurement.

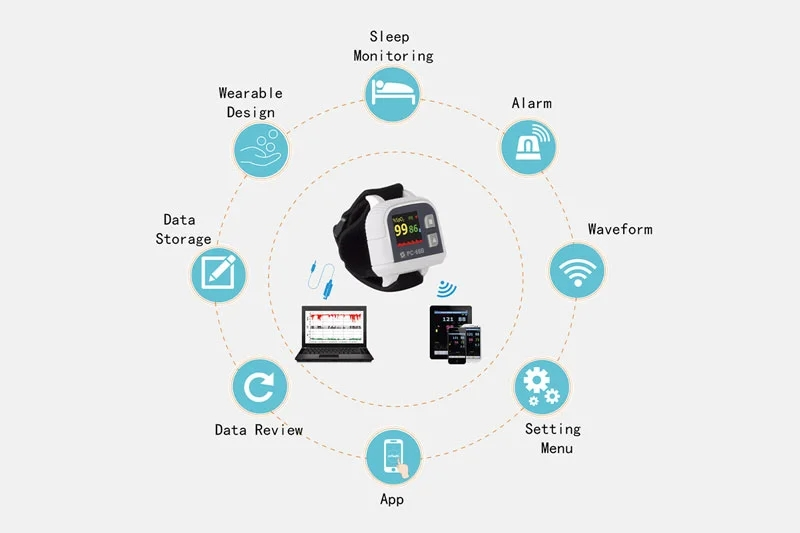

Small, light, and easy to wear. Applicable for longtime continuous monitoring.
Large True color OLED display of SpO2, PR, Pulse Bar, PI & Plethysmogram.
Automatic start measuring when the finger is put into the sensor cap.
Automatic power saving when the finger is out of the sensor or there is no key operation for about 20 seconds.
Audible & Visual alarm function, alarm limits adjustable.
Real-time clock display.
Data trend curve review.
Real-time store and recall SpO2 and Pulse Rate value.
Up to 70 hours of oximetry data storage (Record data once every 1/4/8seconds).
The data record can be uploaded to a PC (Oximeter data manager software available).
Low battery voltage indication.
More than 50 hours of continuous working time with 2AAA alkaline batteries.
| Specifications | |
| Display mode | Color OLED Display |
| Power supply requirement: | 1.5V (AAA size) alkaline battery × 2 |
| Supply voltage: 2.7V~3.3V | |
| Continues working time (display is off): 70hours | |
| Operating current | ≤40mA |
| SpO2 parameter specifications | Measuring range: 35%~99% |
| Accuracy: 75%~99% ±2%; 50%~75% ±3% | |
| Pulse rate parameter specifications | Measuring range: 25bpm~250bpm |
| Accuracy: ±2bpm or ±2% (whichever is greater) | |
| Perfusion index display | Range: 0.2%~20% |
| Performance under low perfusion condition | The measurement accuracy still keeps the above specification while the perfusion index is as low as 0.5% |
| Interference resistance performance | When tested by SpO2 simulator with interference settings such as sunlight or 50/60Hz fluorescent lamp light, the measurement of SpO2 and PR still meets the requirement specified above. |
| Dimensions | W 59mm×D 49mm×H 22mm |
| Net weight | About 60g (not including batteries) |
| Classification | The type of protection against electric shock: Internally powered equipment |
| The degree of protection against electric shock: Type BF applied part. | |
| The degree of protection against harmful ingress of liquids: Ordinary equipment without protection against ingress of water. | |
| Electro-Magnetic Compatibility: Group I, Class B | |
